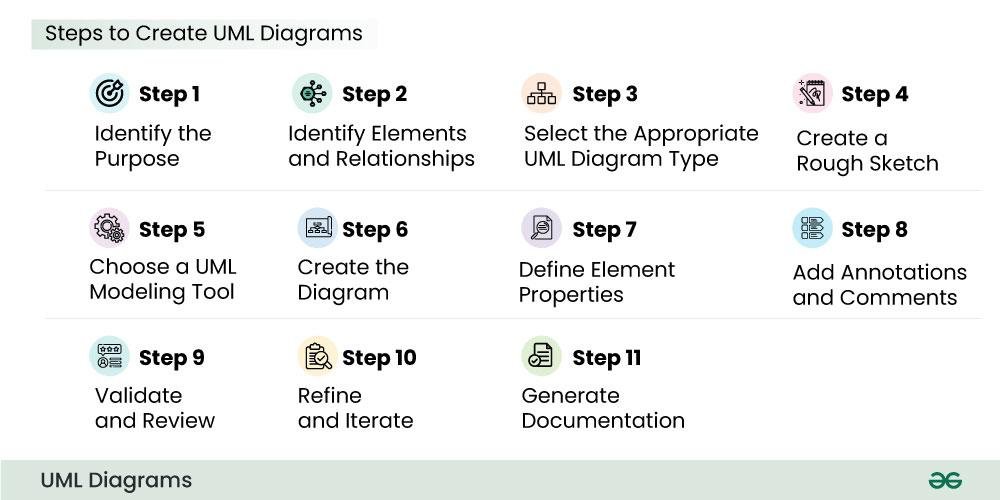

Advanced UML Modeling Techniques Elevate Complex System Engineering Practices

In today's intricate software landscape, where systems grow ever more complex and interconnected, relying solely on basic Unified Modeling Language (UML) diagrams just won't cut it. To truly engineer robust, scalable, and maintainable solutions, you need to go deeper—leveraging Advanced UML Modeling Techniques. These aren't just academic exercises; they are the bedrock for clear communication, precise design, and efficient development, transforming abstract ideas into tangible, executable architectures.

At a Glance: Key Takeaways for Mastering Advanced UML

Beyond the Basics: Understand that advanced UML isn't about more diagrams, but about using existing diagrams with greater depth, precision, and purpose.
Deep Dive into Diagrams: Master the nuances of structural, behavioral, and interaction diagrams to model every facet of your system, from its static architecture to its dynamic runtime behavior.
Tailor UML with Profiles: Learn how to extend and customize UML using profiles, enabling you to create domain-specific modeling languages (DSMLs) perfectly suited to your project's unique needs.
UML as the MDE Backbone: Grasp UML's pivotal role in Model-Driven Engineering (MDE), transforming abstract models into executable code and enhancing development efficiency.
Scale and Integrate: Discover strategies for managing complexity in large systems using organizational constructs and integrating UML with other modeling languages like SysML and BPMN.
Best Practices and Future: Adopt best practices for effective modeling, navigate common challenges, and stay ahead with emerging trends in UML tool development and application.

The Foundation: Unlocking UML's Deeper Potential

UML, or the Unified Modeling Language, has long served as the standard visual language for visualizing, specifying, constructing, and documenting software-intensive systems. It acts as a universal Rosetta Stone, enabling diverse stakeholders—developers, architects, business analysts—to communicate complex ideas clearly and unambiguously. While you might be familiar with fundamental concepts like class diagrams for static structure or use case diagrams for high-level requirements, advanced UML isn't about learning entirely new notations. Instead, it's about applying existing notations with greater sophistication, precision, and strategic intent to tackle the real-world complexities of modern system engineering. It's about shifting from simply drawing diagrams to truly modeling systems in a way that drives architectural decisions, automates code generation, and facilitates comprehensive analysis.

Mastering the Toolkit: Advanced UML Diagramming Techniques

Advanced UML leverages the full spectrum of diagram types, each offering a unique lens through which to examine and design your system. By strategically combining these views, you gain a holistic understanding that no single diagram could provide.

Peeling Back the Layers: Structural Diagrams

These diagrams illuminate the static architecture of your system—the "what it is" rather than "how it behaves."

Class Diagrams: Beyond Basic Relationships
While fundamental for showing classes, attributes, methods, and relationships (inheritance, association, aggregation, composition), advanced class modeling delves into design patterns (e.g., MVC, Observer), interfaces, abstract classes, and the judicious use of stereotypes to convey specific semantics (e.g., <<interface>>, <<entity>>). They become vital for defining detailed architectural blueprints and database schemas, ensuring a solid foundation for your application.
Object Diagrams: Snapshots in Time
Often overlooked, object diagrams are crucial for understanding system behavior within specific scenarios. By representing instances of classes and their relationships at a particular moment, they allow you to validate class diagram structures, debug potential issues, and illustrate complex runtime configurations. Think of them as concrete examples that test the validity of your abstract class models.
Component Diagrams: Architecting Modular Systems
As systems grow, they become collections of interconnected components. Component diagrams model the organization and dependencies between these self-contained units, exposing their interfaces and how they interact. This is essential for designing scalable, maintainable architectures, facilitating independent development, and managing subsystem integration.
Deployment Diagrams: Visualizing the Infrastructure
Where do your software artifacts physically reside? Deployment diagrams answer this by showing the physical allocation of software components (artifacts) to hardware nodes (servers, devices). They are indispensable for planning infrastructure, optimizing resource allocation, and ensuring deployment efficiency in distributed or cloud-native environments.

Charting the Action: Behavioral Diagrams

These diagrams focus on the dynamic aspects of your system, illustrating how objects interact and how the system changes over time.

Use Case Diagrams: Deepening Requirements Understanding
Beyond simply listing actors and use cases, advanced use case modeling employs relationships like <<include>> (mandatory behavior), <<extend>> (optional behavior), and generalization to model complex functional requirements. They help in defining system boundaries clearly, prioritizing features, and ensuring all stakeholder needs are captured comprehensively, forming the basis for functional testing.
Sequence Diagrams: Detailing Object Interactions
These are arguably one of the most powerful behavioral diagrams, modeling the interaction between objects in a time-ordered sequence of messages. Advanced use includes representing asynchronous messages, loops, alternative paths (alt fragments), optional interactions (opt fragments), and parallel execution (par fragments). Sequence diagrams are indispensable for understanding specific scenario flows, identifying bottlenecks, and refining API designs.
Activity Diagrams: Mapping Workflows and Processes
Similar to flowcharts but far more powerful, activity diagrams visualize the flow of control from one activity to another, supporting both sequential and concurrent behavior. Advanced techniques involve using swimlanes to assign activities to specific actors or organizational units, modeling decision points, forks/joins for parallelism, and exception handling. They are invaluable for modeling complex business processes, system workflows, and even sophisticated algorithm logic.
State Machine Diagrams: Capturing Object Lifecycles
For objects with complex, event-driven behavior, state machine diagrams are crucial. They show the different states an object can be in and the transitions between these states triggered by specific events. Advanced usage includes nested states, history states (remembering a previous substate), and entry/exit actions associated with states. These diagrams are particularly useful for designing reactive systems, user interfaces, and controllers where an object's behavior heavily depends on its current condition.

Orchestrating Interactions: Interaction Diagrams

These diagrams provide different perspectives on how objects communicate and collaborate to achieve a goal.

Communication Diagrams: Structure and Messaging Combined
Previously known as Collaboration Diagrams, communication diagrams highlight both the structural relationships between objects and the sequence of messages exchanged. They offer a complementary view to sequence diagrams, emphasizing the collaborators rather than the strict timeline, making them great for understanding local message flows within a group of objects.
Interaction Overview Diagrams: The Big Picture of Interaction
When dealing with extremely complex interactions involving multiple sequence, activity, or communication diagrams, an interaction overview diagram provides a high-level view. It orchestrates the flow of activities across various interaction diagrams, acting like an activity diagram where individual nodes represent other interaction diagrams. This helps manage complexity and ensures a cohesive understanding of overall system behavior.
Timing Diagrams: Precision for Real-Time Systems
For systems where timing and synchronization are paramount—think embedded systems, real-time control, or high-performance distributed architectures—timing diagrams model the behavior of objects over a specific period. They display changes in an object's state or value along a linear time axis, capturing explicit timing constraints and concurrency issues. This precision is critical for validating real-time requirements.

Customizing UML: The Power of UML Profiles

While UML is a general-purpose language, real-world projects often operate within highly specialized domains. This is where UML Profiles shine—they are the mechanism for customizing and extending the UML metamodel itself, allowing you to create a domain-specific modeling language (DSML) tailored precisely to your context.
Think of it like this: UML provides the fundamental grammar and vocabulary. A profile lets you add specialized words and rules relevant only to your domain, making your models more expressive and precise without abandoning the UML standard.

The Building Blocks of a Profile

A UML Profile is comprised of three key elements:

Stereotypes: These extend the vocabulary of UML by giving existing UML elements (like classes, attributes, or associations) a new meaning or purpose specific to your domain. For instance, in a financial system, you might define a <<Transaction>> stereotype for a Class, or a <<CreditCard>> stereotype for an Account. Stereotypes are visually represented with guillemets (<< >>).
Tagged Values: These add new properties or information to elements stereotyped by your profile. If you have a <<Transaction>> stereotype, you might add a tagged value like {amount: Decimal} to specify the transaction's value, or {timestamp: DateTime}.
Constraints: These specify rules that govern the correct usage of stereotyped elements or tagged values within your domain. For example, a constraint could stipulate that a <<Transaction>> must always be associated with at least one <<Account>>, or that a {currency} tagged value must be from a predefined list.

A Step-by-Step Guide to Creating a Custom Profile

Identify Your Domain: What specific context are you modeling? (e.g., medical devices, financial trading, aerospace systems).
Define Core Concepts: What are the unique entities, relationships, and behaviors in this domain that aren't adequately captured by standard UML?
Create Stereotypes: For each core concept, decide which existing UML element it extends. For example, a "Sensor" in a real-time system might extend a UML Class: <<Sensor>>.
Add Tagged Values: For each stereotype, determine what additional information is needed. For <<Sensor>>, you might add {unit: String} (e.g., "Celsius"), {frequency: Integer} (e.g., 10 Hz).
Specify Constraints: Define rules to ensure domain integrity. For <<Sensor>>, a constraint might be that its frequency must be greater than zero.
Applications: UML profiles are incredibly powerful for creating highly specialized models in domains like real-time embedded systems (e.g., MARTE profile), enterprise architecture (e.g., TOGAF using ArchiMate which can be integrated with UML), or specific financial applications where standard UML might be too generic.

Driving Development with Models: UML and Model-Driven Engineering (MDE)

Model-Driven Engineering (MDE) is an approach to software development that emphasizes the creation and exploitation of domain-specific models as primary artifacts. Instead of writing code directly, developers build abstract models that are then automatically transformed into executable code or other deployable artifacts. UML plays a crucial, often central, role in this paradigm.

The Core Principles of MDE

Model-Centric: Models are not just documentation; they are the primary input to the development process.
Domain-Specific: Models capture concepts and rules specific to the problem domain, making them more expressive and understandable to domain experts.
Automated Transformation: Tools automatically transform higher-level, abstract models into lower-level, platform-specific models or even directly into code.

The MDE Process with UML

Create a Platform-Independent Model (PIM): This is typically a high-level UML model (e.g., Class diagrams, Use Case diagrams, Activity diagrams) that describes the system's functionality and structure without committing to any specific technological platform (e.g., Java, .NET, specific database). The PIM focuses on what the system does.
Transform PIM to Platform-Specific Model (PSM): Using automated tools, the PIM is transformed into one or more PSMs. Each PSM extends the PIM with details relevant to a specific target platform. For example, a PIM class might be transformed into a Java EJB component in one PSM and a C# .NET class in another. This transformation process can be guided by UML profiles (e.g., a <<JavaBean>> stereotype).
Generate Code from PSM: Finally, code generators create executable source code, database schemas, configuration files, and other artifacts directly from the PSM. This significantly reduces manual coding effort and improves consistency.

Benefits and Challenges

Benefits: MDE promises significant improvements in productivity, as less manual coding is required. It also enhances quality by reducing human error, ensures consistency between design and implementation, and improves maintainability because changes can be made at the model level and propagated automatically. This can lead to a more resilient system, as detailed in discussions around the benefits of Model-Driven Architecture.
Challenges: The initial learning curve for MDE can be steep, requiring expertise in modeling, meta-modeling, and transformation languages. Effective MDE relies heavily on robust tool support, and managing large-scale models and their transformations can become complex.

Architecting at Scale: Modeling Complex Systems and "Systems of Systems"

Modern enterprise solutions are rarely monolithic. They are often "systems of systems" (SoS)—large, complex arrangements of independent, operational systems that interoperate to achieve a larger goal. Modeling such intricate architectures demands more than just drawing individual diagrams.
UML provides powerful organizational constructs to manage this scale:

Packages: These are generic organizational units in UML used to group related elements (classes, use cases, other packages) and control their visibility and dependencies. Packages allow you to decompose a large system into logical, manageable modules, making the model easier to understand, maintain, and version control.
Subsystems: A specific type of package that represents a significant independent part of a system, often with a well-defined interface and behavior. Subsystems encapsulate functionality and provide a clear boundary for development.
Hierarchical Modeling: By nesting packages and subsystems, you can create a hierarchical view of your system, allowing stakeholders to drill down from high-level architectural views to detailed design specifications as needed. This approach helps in managing complexity by focusing on different levels of abstraction.
For true "systems of systems" modeling, a common practice is to define distinct UML models for each constituent system and then use dependency relationships between packages to illustrate how these systems interact. Advanced techniques might involve using specific stereotypes within a profile to denote system boundaries or integration points, fostering clear communication across multiple development teams.

Best Practices for Effective Advanced UML Modeling

Crafting powerful UML models isn't just about knowing the diagrams; it's about applying them intelligently and consistently.

Design Principles: Building Robust Models

Encapsulation: Model elements should hide their internal complexity and expose only necessary interfaces. This promotes modularity and reduces coupling.
Separation of Concerns: Each part of your model (and system) should address a distinct concern. For example, a class diagram focuses on structure, while a sequence diagram focuses on a specific interaction.
Capture Intent: Your models should clearly communicate the intent behind a design decision, not just the raw mechanics. Use descriptive names, comments, and notes.

Modeling Guidelines: Ensuring Consistency and Accuracy

Standard Notation: Stick strictly to UML notation standards. Deviations lead to misinterpretation.
Naming Conventions: Adopt clear, consistent naming conventions for all elements (classes, attributes, methods, associations, etc.) across your project. This enhances readability and maintainability.
Documentation: Augment your diagrams with textual descriptions, constraints, and assumptions. A picture is worth a thousand words, but a few well-chosen words can clarify a thousand pictures. For a deeper dive into notation, consult an essential UML notation guide.
Granularity: Choose the right level of detail for each diagram. Not every diagram needs to show every intricate detail; sometimes a high-level view is more appropriate.
Iteration: Modeling is rarely a one-shot process. Be prepared to iterate, refine, and evolve your models as requirements change and understanding deepens.

Tool Selection & Integration: Your Digital Workbench

Choosing the right UML tool is crucial. Look for tools that:

Support all necessary diagram types: Ensure it covers the advanced diagrams you plan to use.
Offer code generation/reverse engineering: These features can bridge the gap between model and code, enabling MDE practices.
Facilitate collaboration: For team-based projects, features like version control integration, multi-user editing, and commenting are essential.
Provide validation checks: Tools that automatically check for UML syntax errors and consistency issues save immense time. Many teams find value in an online UML diagram generator that offers these advanced features.

Collaboration & Teamwork: The Human Element

Even the most sophisticated models are useless if the team doesn't understand or agree on them.

Regular Reviews: Conduct frequent model reviews with all stakeholders—developers, architects, QAs, and business analysts.
Shared Understanding: Use models as a basis for discussions, ensuring everyone has a consistent and accurate understanding of the system.
Centralized Repository: Store models in a version-controlled repository to manage changes and facilitate collaboration.
Communication: Models are communication tools. Use them actively to convey ideas, clarify ambiguities, and make informed decisions.

Navigating the Pitfalls: Challenges and Solutions in Advanced UML Modeling

While powerful, advanced UML modeling isn't without its hurdles. Understanding these challenges and proactive solutions is key to successful implementation.

Common Challenges

Managing Complexity: As models grow larger and more detailed, they can become overwhelming and difficult to navigate, especially without proper organization.
Ensuring Consistency and Accuracy: Keeping multiple diagrams consistent with each other (e.g., a class defined in a class diagram must behave consistently in a sequence diagram) and accurate with the actual system can be a significant challenge.
Over-Modeling vs. Under-Modeling: Finding the right balance of detail is critical. Over-modeling can lead to wasted effort and models that are difficult to maintain, while under-modeling leaves crucial aspects undefined.
Tool Limitations: Not all UML tools are created equal. Some may lack support for advanced features, robust validation, or effective collaboration.
Integration with Development Process: Integrating model creation and maintenance seamlessly into fast-paced development methodologies like Agile can be tricky. However, there are proven ways of integrating UML into Agile workflows.

Practical Solutions

Leverage Organizational Constructs: Aggressively use packages, subsystems, and architectural layers to break down complex systems into manageable units. Establish clear boundaries and interfaces between these units.
Prioritize Diagrams: Don't try to use every diagram type for every aspect. Focus on the diagrams that provide the most insight for a specific problem or design phase.
Automated Validation and Consistency Checks: Utilize UML tools that offer robust validation rules and can check for consistency across different diagrams. This helps catch errors early.
Model-Driven Development (MDD) Principles: Adopt MDD principles where models are the source of truth, and code is generated from them. This inherently links design and implementation, reducing inconsistency.
Documentation and Glossary: Maintain a clear project glossary for terms and concepts. Document assumptions, design decisions, and rationale alongside your models.
Training and Expertise: Invest in training for your team members on advanced UML techniques and best practices. Expertise in modeling paradigms is invaluable.

Beyond UML: Integration with Other Modeling Languages

While UML excels at software modeling, other specialized languages address different facets of system design. Effective system engineering often requires integrating UML with these languages to gain a truly comprehensive view.

Integration with SysML (Systems Modeling Language): SysML is a dialect of UML specifically tailored for systems engineering applications. It extends UML with constructs for requirements, blocks, allocations, and parametrics, making it ideal for modeling the multidisciplinary aspects of complex physical systems (hardware, software, data, personnel, facilities). When dealing with systems that have significant hardware-software interaction, understanding UML's relationship with SysML becomes essential.
Integration Method: Model transformation (converting SysML models or parts thereof into UML, or vice versa), co-simulation (running linked models simultaneously), or model federation (maintaining separate models with defined interfaces between them).
Case Snippet: In automotive systems, SysML might model the vehicle's overall architecture, functional allocations, and physical interfaces, while UML would detail the software components, control algorithms, and data structures within each electronic control unit (ECU).
Integration with BPMN (Business Process Model and Notation): BPMN is a standard for modeling business processes. It's excellent for describing the "what" and "who" of a business process, including tasks, events, gateways, and participants.
Integration Method: Often, BPMN models define the high-level business workflow, and then specific tasks within that workflow are elaborated using UML Activity Diagrams or Use Case Diagrams to describe the system's role in automating those tasks.
Case Snippet: A BPMN diagram could model an "Order Fulfillment" process. A specific task within that process, "Process Payment," might then be detailed by a UML Sequence Diagram showing the interaction between the Order Processing System and the Payment Gateway service.
By strategically integrating these languages, engineers can achieve a seamless transition from business requirements to system design and finally to software implementation, ensuring traceability and consistency across the entire development lifecycle.

The Horizon: Future Trends in UML Modeling

UML is not a static language; it continues to evolve and adapt to the changing landscape of software development and emerging technologies.

Evolving with Modern Methodologies

Agile and DevOps Integration: As development cycles accelerate, UML is finding new relevance as a communication and design tool within Agile and DevOps environments. Rather than heavy, upfront documentation, focused, just-in-time modeling supports iterative development, architectural clarity, and automated deployments.
Microservices Architecture: UML helps in modeling the bounded contexts, interfaces, and interactions of microservices, crucial for designing resilient and scalable distributed systems. Component and deployment diagrams become vital here.

Applications in New Technologies

Internet of Things (IoT): Modeling device interactions, data flows from sensors, and edge computing logic benefits greatly from UML's ability to represent diverse system components and their dynamic behavior. State Machine diagrams are particularly useful for sensor behavior.
Artificial Intelligence (AI) and Machine Learning (ML): While AI algorithms themselves might be coded, UML can model the system integrating AI components, their data inputs/outputs, and their interactions within a larger application architecture.
Cloud Computing: Deployment diagrams are invaluable for visualizing cloud infrastructure, container orchestration (e.g., Docker, Kubernetes), and serverless function dependencies.

Advancements in UML Tools

The future of UML is closely tied to the capabilities of its tools. Expect to see:

Enhanced AI/ML Integration: Tools may use AI to suggest common design patterns, detect modeling inconsistencies, or even assist in generating preliminary diagrams from textual descriptions.
More Seamless Code Generation and Reverse Engineering: Improving the fidelity and configurability of model-to-code and code-to-model transformations.
Advanced Simulation and Analysis: Tools will increasingly offer features to simulate model behavior, perform performance analysis, or verify model correctness earlier in the design cycle.
Improved Collaboration and Cloud-Native Features: Better real-time collaboration, integration with project management platforms, and cloud-based deployment options for modeling environments.
Integration with Low-Code/No-Code Platforms: UML models could serve as the foundation for generating applications directly within low-code/no-code environments.

Elevate Your Engineering: The Path Forward

Mastering advanced UML modeling techniques isn't merely about adding another skill to your repertoire; it's about fundamentally elevating your approach to system engineering. In a world saturated with complex software, the ability to clearly visualize, precisely specify, and effectively communicate intricate designs is an invaluable asset.
By diligently applying structural, behavioral, and interaction diagrams with depth, by leveraging UML Profiles to tailor your language to your domain, and by embracing UML's role in Model-Driven Engineering, you move beyond simply describing code to actively designing and driving its creation. This leads to more robust architectures, clearer communication among teams, and ultimately, more successful project outcomes.
The journey into advanced UML is continuous. Start by identifying the most pressing complexities in your current projects. Experiment with a new diagram type, explore the power of stereotypes, or dive into a proof-of-concept for code generation from your models. The goal isn't perfection, but progress. Embrace these techniques, and you'll find yourself not just building software, but architecting the future with clarity and confidence.
